CHASING M2 S
CHASING M2 S
Industrial-Grade Underwater ROV
Flexible
Stable
Endless exploration
CHASING M2 S is an industrial-grade revolutionary underwater robot with upgraded intelligent flight control system and image algorithm, bringing unprecedented underwater perception and freedom of movement.
C-Sense Control System, Flexible and Stable
NeptuneX intelligent flight control system
8 vectored-thrusters and Butterfly wing outline
Apex anti-stuck C-Motor 3.0
Flagship airtight structure
NeptuneX Intelligent Flight Control System
The exclusive CHASING navigation algorithm enables more precise operation; CHASING M2 S can maintain the movement direction even in the presence of external force interference or difficult operating conditions.
Thrust direction
Destination
Underflow force
（Before）
Thrust direction
Destination
Underflow force
（After）
NeptuneX Intelligent Flight Control System
The Kalman inertial navigation fusion depth observation method greatly reduces the impact of ocean waves on ROV and maintains the depth stable, significantly enhances the vertical flow resistance capability.
Stable depth
|Observation point|
Stable depth
The waves rise/fall
NeptuneX Intelligent Flight Control System
The exclusive CHASING navigation algorithm enables more precise operation; CHASING M2 S can maintain the movement direction even in the presence of external force interference or difficult operating conditions.
- Thrust direction
- Destination
- Underflow force
- （Before）
- Thrust direction
- Destination
- Underflow force
- （After）
- Stable depth
- Observation point
- Stable depth
- The waves rise/fall
The Kalman inertial navigation fusion depth observation method greatly reduces the impact of ocean waves on ROV and maintains the depth stable, significantly enhances the vertical flow resistance capability.

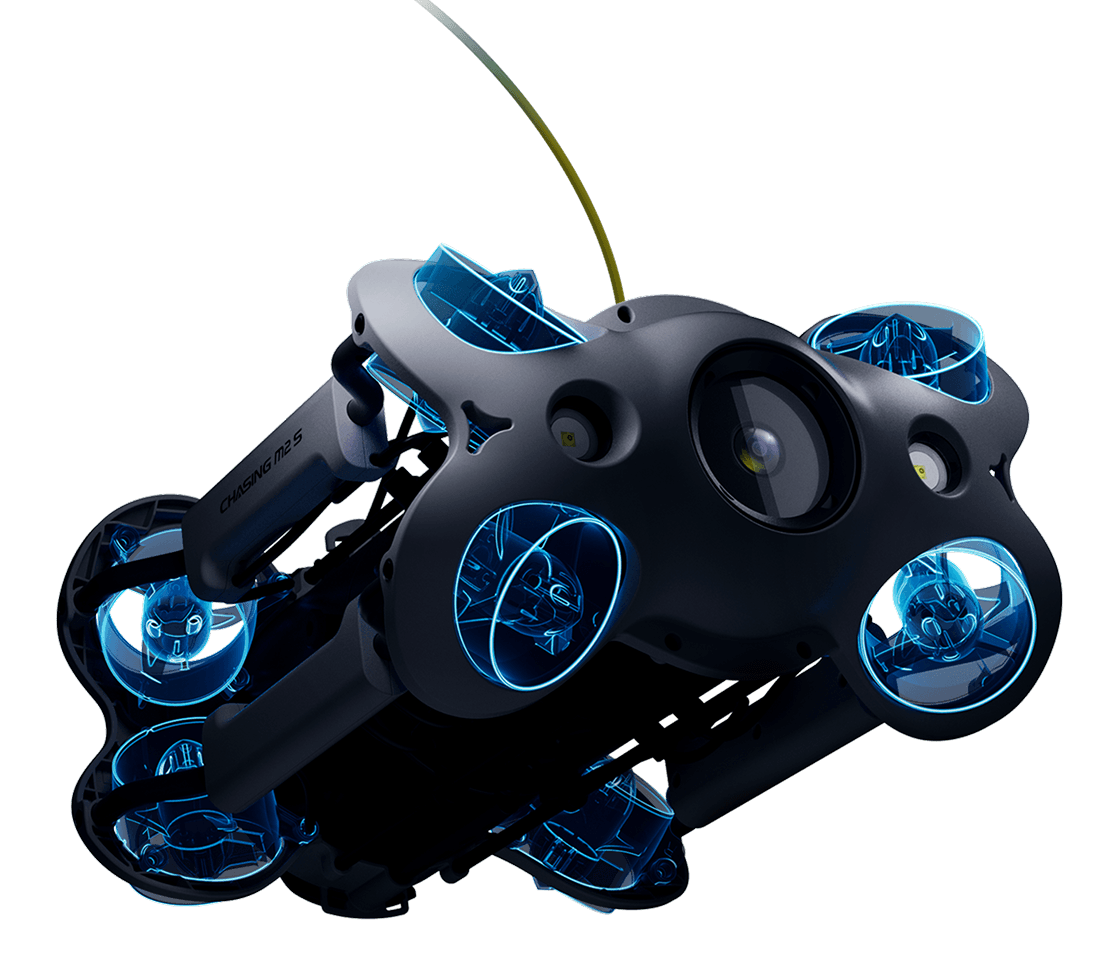

8 Vectored-Thrusters and Butterfly Wing Outline

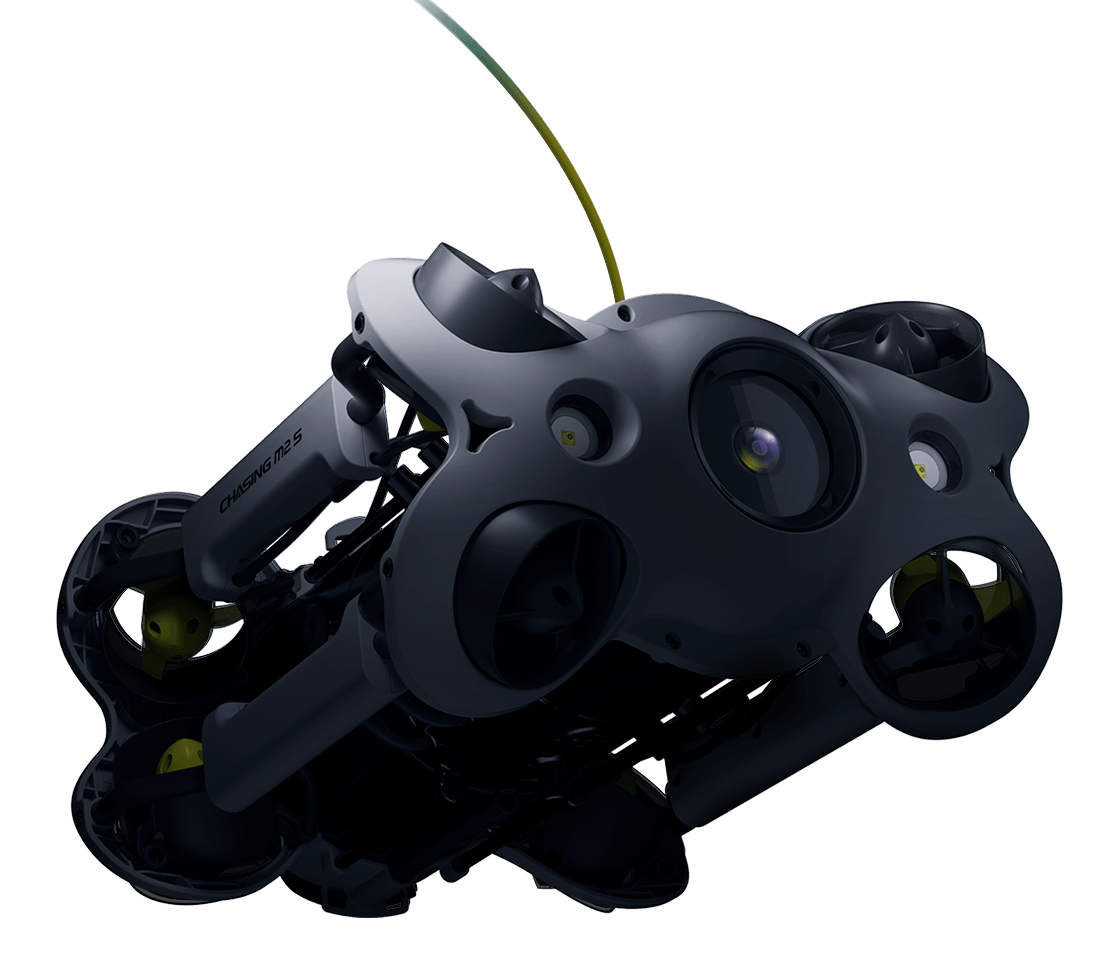

CHASING M2 S remains the symmetrical vector layout of the eight thrusters and the streamlined design of the butterfly wing outline at front and rear to protect the propellers. It supports 360-degree omnidirectional movement that has high posture response speed and great stability.
Apex Anti-stuck C-Motor 3.0
The third-generation Apex Anti-stuck C-Motor 3.0 used in the CHASING M2 S adopts a unique anti-stuck solution and magnet protection technology, which ensures power supply but also greatly reduces electrochemical corrosion and aggregation rust caused by motor wear. The anti-stuck performance is stronger, making it more reliable to use.

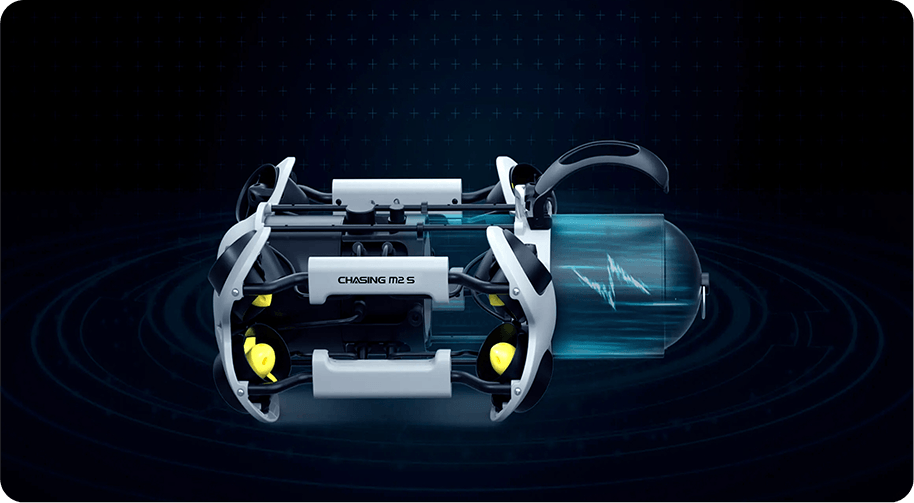

Flagship Airtight Structure
Fully innovate the waterproof structure of the main cabin and lighting to further enhance the stability of underwater operations.
All-scenario Efficient Operation System
Multiple accessories
Swappable battery
A wide working range
Portable and convenient
All scenarios application

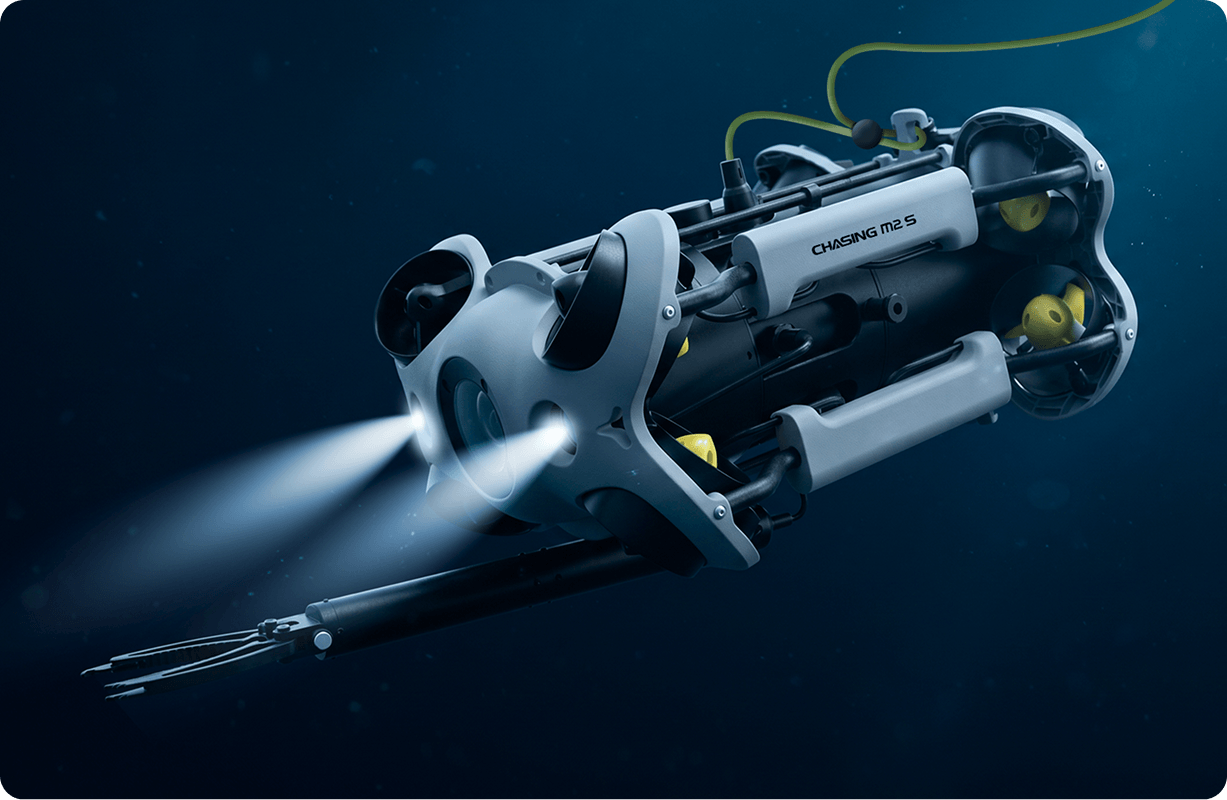

Multiple Accessories
Mountable for CHASING self-developed accessories such as grabber arm, distance lock sonar, laser scaler, floodlights, etc., as well as third-party accessories such as GoPro.
Self-developed accessories

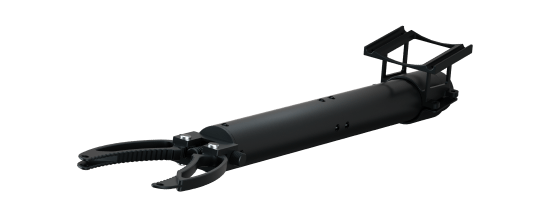

Grabber Arm
Floodlight
Distance Lock Sonar
Third-party accessory

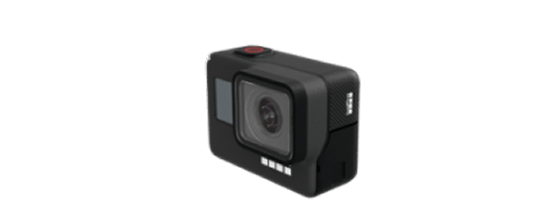

GoPro
Multiple Accessories
Mountable for CHASING self-developed accessories such as grabber arm, distance lock sonar, laser scaler, floodlights, etc., as well as third-party accessories such as GoPro.
Grabber Arm
Floodlight
Distance Lock Sonar
GoPro (Third-party accessory)
Swappable Battery
CHASING M2 S has a default 97.68Wh battery that can power up to 4 hours operation. The battery compartment is ready to use, 200Wh backup battery is also optinal to meet the needs of long-time operation.
A Wide Working Range
CHASING M2 S can dive to a maximum depth of 100 meters, an operating radius of 200 meters. 400 meters extendable distance.
400m
Maximum movement radius
200m
Movement radius
100m
Maximum depth to dive

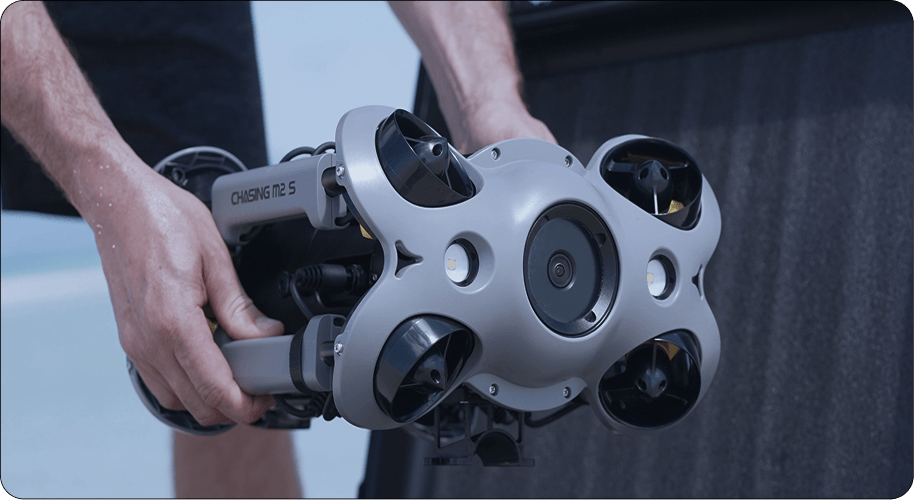

Portable and Convenient
CHASING M2 S is portable and has a compact body. Single-person operation and quick deployment brings an effective operating experience under a variety of scenarios.
All Scenarios Application

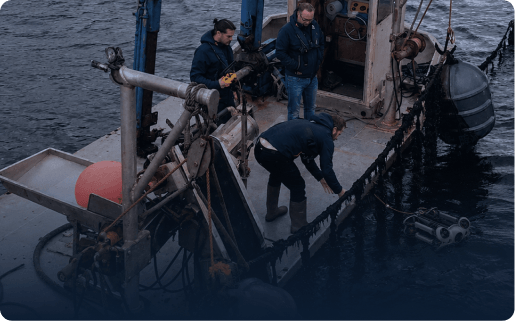

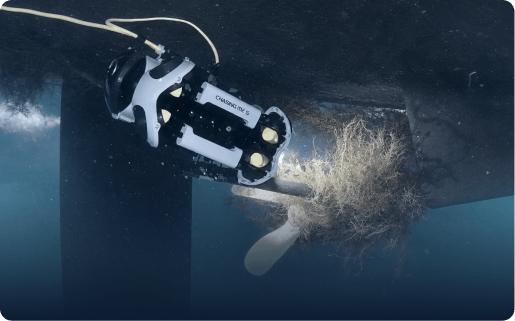

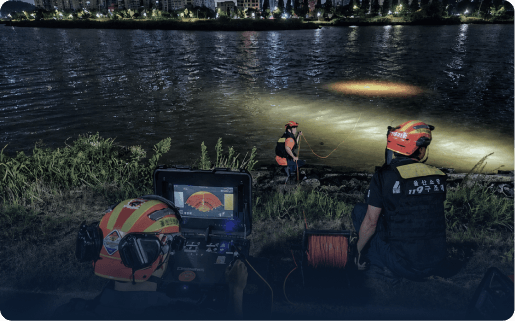

CHASING M2 S is widely applied in various industries, such as underwater photography, hull and dock inspection, fishery and aquaculture monitoring, underwater emergency rescue, scientific exploration, water conservancy and hydrapower inspection, Pipeline inspection, providing efficient solutions for underwater observation tasks.
HD Visual Image Transmission System
4K EIS Image Stabilization Camera
Upgraded CHASING Aquavision image algorithm
User friendly interaction
4K EIS Image Stabilization Camera and 4000lm LED Lights
CHASING M2 S has 4K EIS image stabilization camera and two 2000lm LED lights, which can clearly capture every detail underwater.
- 4K Video
- 12 Megapixel
- 1/2.3″ SONY CMOS
- F2.8 Aperture
- EIS Image Stabilization
- 4000lm LED lights
Upgraded CHASING Aquavision Image Algorithm
The color restoration algorithm design based on underwater light, physical light route, and environmental, as well as the visual identification and tracking system, completely upgrade image transparency, clarity, color layering, and noise.
Pre-upgrade
After upgrade
User Friendly Interaction
Observer mode & Multiple devices watching
HDMI output
Support VR
Live-stream & Social media sharing
Take pictures and recording video
Live-stream & Social media sharing
Quick editing tools
64G removable SD card
Observer mode & Multiple devices watching
HDMI output
Support VR
Live-stream & Social media sharing
Take pictures and recording video
Time-lapse photography
Quick editing tools
64G removable SD card
